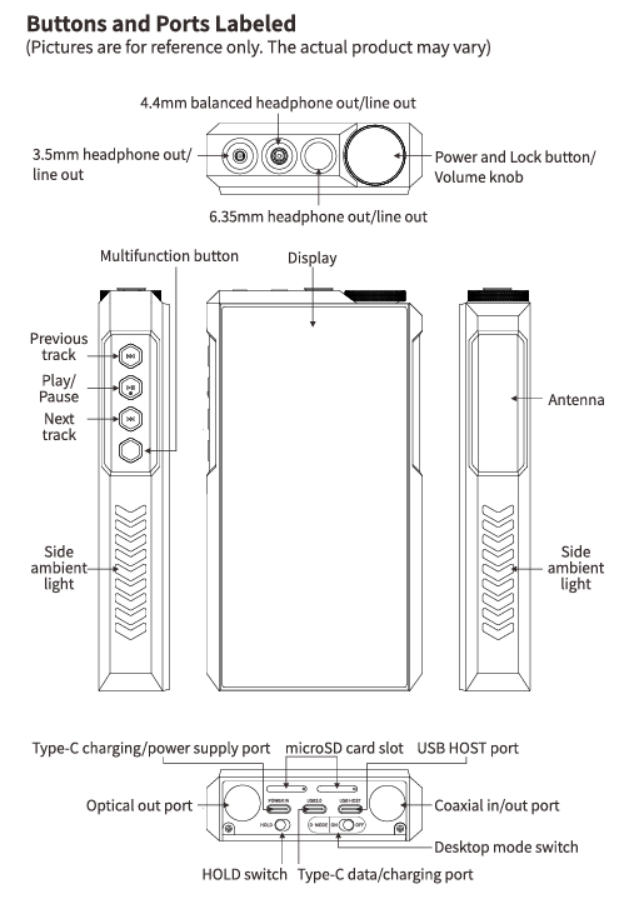

3. Buttons and ports instruction of M27

修改于星期二, 十一月 18 在 11:02 AM

1.What are the differences between the three USB ports at the bottom of the M27?

	USB 3.0	USB HOST	POWER IN
charging/power supply	√	×	√
USB Audio：USB output to external decoder	√	√	×
USB OTG：Connect to U disk/hard disk/keyboard etc.	√	√	×
USB DAC decoding	√	×	×
Connect to computer for data transmission	√	×	×
Connect to DK1 Plus stand	√	Not recommended	Not recommended
Note			only supports PD2.0/3.0 fast charging, while other types are recogrhized as normal charging

2.M27 Output priority

USB output＞Bluetooth>Coaxial=optical=3.5&4.4&6.35 analog output

The 3.5mm, 4.4mm, and 6.35mm output ports can output audio simultaneously. However, it is recommended to connect only one port at a time, as multiple connections may result in some power loss.

3.How to use the multifunction button?

①In Android/pure music mode: Add to Favorites (default option), Play next song randomly (randomly play the next song according to random play rules), Play/Pause, Delete currently playing song, Switch filter (cyclically), Switch equalizer (cyclically), Enter USB DAC Mode, Enter Bluetooth Receiving Mode, Lock screen/Wake up, Enter Cassette Mode, Open dropdown menu, No function

②In Bluetooth Receiving mode/USB DAC mode, the multifunction button is forcibly set to: No Function.

Note: This button only responds in Android mode/Pure Music mode, and some functions only apply to FIIO Music.

4.What TF card is recommended for M27?

The M27 supports two microSD cards simultaneously, with each card supporting up to 2TB theoretically. The read/write speed of both slots is nearly identical.

5.M27's antenna information and precautions

The upper left side of the M27 houses the physical control buttons, while the right side contains the antenna area. Please avoid covering the antenna area with metal objects, as this can interfere with wireless performance. Normal handheld operation does not affect signal reception.
